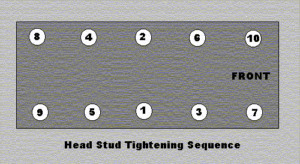

Engine Cylinder Head Tightening Sequence and Torque Specifications – 2.5L NA Estimated reading: 2 minutes Contributors Overview The cylinder head tightening sequence and torque specifications procedure is critical for ensuring proper sealing and performance of the cylinder head on all the Porsche 944 variants with an 8-valve engine configuration (1982–1989). This process secures the cylinder head to the engine block, preventing leaks and maintaining compression. For the 8-valve (engine designators M44/01-04 for 1983–1985.5 and M44/05-12 for 1985.5–1989), the procedure varies slightly depending on the model year and nut size, with earlier models (pre-1985.5) using steel control arms and later models (1985.5–1989) using alloy control arms, which may influence related engine bay access. Follow the steps below to torque the cylinder head bolts correctly, allowing time for studs to settle between steps. Head Stud Torque Specifications When following the torque sequences, wait approximately 15 minutes between torque steps to allow the studs to stretch and settle completely before the next torque application. Vehicle Engine Designator Torque Specs 944 (1983–1985.5) M44/01-04 Step 1: 20 Nm (15 ft-lbs) Step 2: 50 Nm (37 ft-lbs) Step 3: 90 Nm (66 ft-lbs) 944 (1985.5–1987) M44/05-08 Step 1: 20 Nm (15 ft-lbs) Step 2: 50 Nm (37 ft-lbs) Step 3: 90 Nm (66 ft-lbs) 944 (1985.5–1988) with 12 mm high nuts M44/05-10 Step 1: 20 Nm (15 ft-lbs) Step 2: 90° angle Step 3: 90° angle 944 (1989) M44/11-12 Step 1: 20 Nm (15 ft-lbs) Step 2: 60° angle Step 3: 60° angle Tightening Sequence The tightening sequence must be performed in the order specified in the Porsche 944 Workshop Manuals for the 8-valve engine. Refer to the workshop manual for the exact sequence diagram, as the 16-valve sequence differs and is not applicable here. Sources Clark’s Garage Pelican Parts Porsche 944 Workshop Manuals YouTube Tagged:Cylinder HeadEngine Cylinder Head Tightening Sequence and Torque Specifications – 2.5L NA - PreviousCylinder Head and Head Gasket Removal – 2.5L NANext - Cylinder Head Tightening Sequence and Torque Specifications – 2.5L NAEngine Filter Change – 2.5L NA
